| 1 |

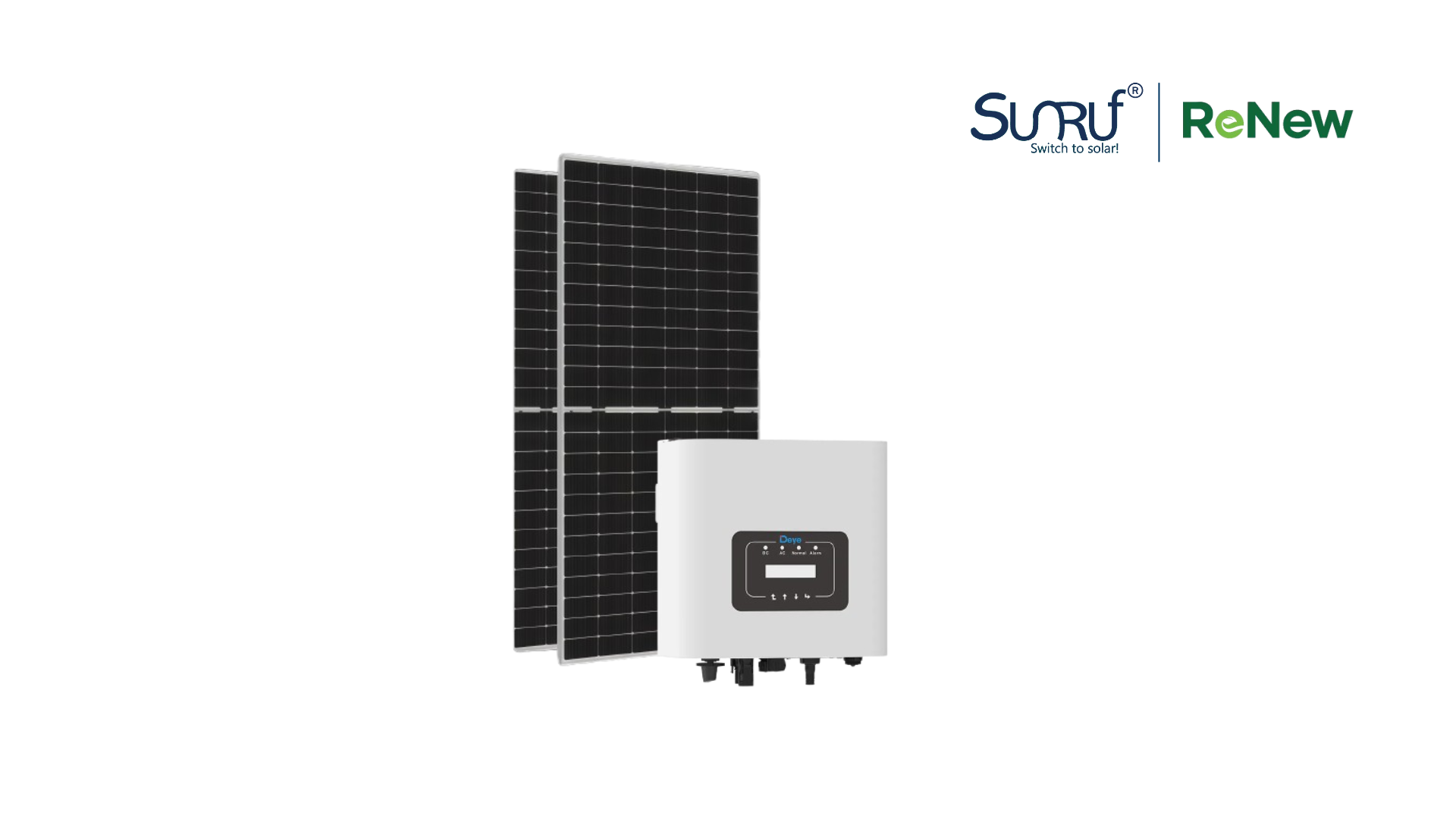

Solar Panel - DCR |
Renew |
DCR 540 - 545 Wp, Bifacial |
No's |
6 |
| 2 |
Solar Inverter |
Deye/Gronsol |
3 kW, Grid Tied Ongrid Inverter Single Phase with Cloud RMS, BIS Certified |
No's |
1 |
| 3 |
DCDB - 1 IN 1 OUT |
As per Renew Solar Kit |
1 IN 1 OUT, 600V SPD |
No's |
1 |
| 4 |
ACDB - Single Phase |
As per Renew Solar Kit |
32A - Single Phase, with MCB, Polycarbonate type enclosure IP 65 |
No's |
1 |
| 5 |
Earthing Rod |
As per Renew Solar Kit |
17.2 MM Dia 1 Mtr Long Copper Bonded Rod |
No's |
3 |
| 6 |
Earthing Back Fill Compound |
As per Renew Solar Kit |
Earthing back fill compound, Chemical compound each 15 Kgs Bag |
No's |
3 |
| 7 |
Earthing Chamber/Pit Cover |
As per Renew Solar Kit |
|
No's |
3 |
| 8 |
Lightning Arrestor Conventional Type - Spike |
As per Renew Solar Kit |
16 MM Dia Conventional Type, 1.2 Mtr long with 5 spike Copper Bonded |
No's |
1 |
| 9 |
LA Stand |
As per Renew Solar Kit |
|
No's |
1 |
| 10 |
Generation Meter |
Secure |
Single Phase Solar Generation Meter |
No's |
1 |
| 11 |
MC4 Connector |
Ningbo/Elmex |
UV Resistive MC4 Connectors suitable for terminating up to 4 Sq.mm Compatible 1000V/30Amp UV Sustainable as per IEC 29, Pairs (+ve & -ve) |
Pair's |
4 |
| 12 |
Lugs - Aluminium Ring Type 10 Sq. mm ( Earthing System, Module to Module ) |
Reputed |
Ring Type Lugs Suitable size 1CX10 Sq. mm Aluminium Cable |
No's |
25 |
| 13 |
Lugs - Copper Pin Type 4 Sq. mm ( ACDB, DCDB, Meter ) |
Reputed |
Pin Type Lugs Suitable size 1CX 4 Sq. mm DC Cable, AC Cable |
No's |
20 |
| 14 |
Electrical Tape |
Reputed |
Red-1, Black-1, Green - 1 |
Set |
1 |
| 15 |
Cable Ties - UV Protected - Black |
Reputed |
300mm X4.5mm Cable Ties - UV Protected ( Pack of 100 Unit ) |
Packet |
1 |
| 16 |
Earthing Nut Bolt Set ( Module to Module , Earthing System ) |
GI |
GI Earthing Nut Bolt Set |
No's |
30 |
| 17 |
DC Cable - Black |
Polycab/Microtek/Waree |
1Cx 2.5 Sq. mm Solar grade, XLPO insulated, FRLS PVC outer sheathed, UV resistant 1.5 kV (DC) grade heavy duty, PVC innersheathed Cables confirming to IS 1554, Temperature range -40 to +90 C |
Mtr's |
30 |
| 18 |
DC Cable - Red |
Polycab/Microtek/Waree |
1Cx 2.5 Sq. mm Solar grade, XLPO insulated, FRLS PVC outer sheathed, UV resistant 1.5 kV (DC) grade heavy duty, PVC innersheathed Cables confirming to IS 1554, Temperature range -40 to +90 C |
Mtr's |
30 |
| 19 |
Earthing Cable - Green ( ACDB, DCDB, Inverter, Mod to Mod , AC,DC,LA ) |
Kanbery Cable |
1Cx16Sq.MM Aluminium Flexible Cable |
Mtr's |
100 |
| 20 |
AC Cable ( Inverter to ACDB to Generation Meter to Distribution Panel ) |
Polycab/Havells/Anchor |
2Cx2.5 Sq.MM Cu Flexible cable, heavy duty, UV resistant PVC type-A, FRLS. |
Mtr's |
30 |
